In the “drum (RST) + screw press (TASSTER)” dewatering combination, the drum pre-thickener exceeds 80% of the total water drained, enabling the screw press to operate under optimum conditions

Advantages

High drainage thanks to the smooth dynamic filtration
Large choice of adapted screens mesh
Completely enclosed machines, with no risk of gas emissions
Easy visual control of flocculation
Very little maintenance
Can be fitted with a flocculation tank

RST can reach a triple performance : in term of flow (up to 250 m3/hour), in term of incoming concentration range (5 to 100 g/l) and in term of capture rate (cleaner filtrate from 30 to 300 mg/l).

The short animated film shows how the RST works.

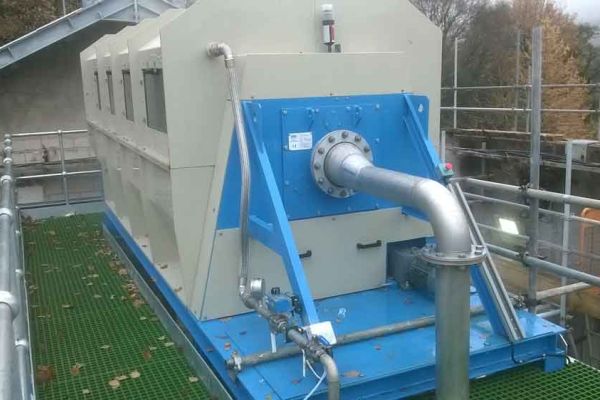

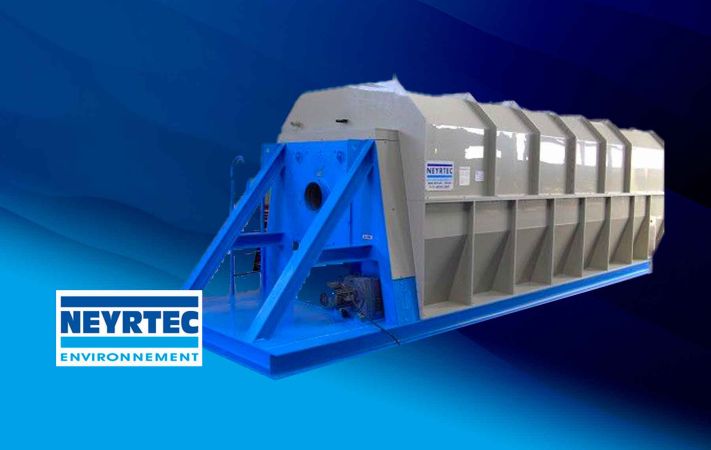

NEYRTEC® ROTARY SCREEN THICKENER FOR SLUDGE THICKENING .

RST MODELS

We provide a wide range of machines to meet capacity and budget requirements.

TYPE	Capacity m3 / h	Dimensions (mm)	Weight (kg)
RST 500	12 to 25	3320 X 1450 X 1590	900
RST 1000	25 to 50	4950 X 1660 X 1990	1600
RST 1500	37 to 75	5550 X 1900 X 2400	2550
RST 2000	50 to 100	6660 X 2020 X 2400	3150
RST 2500	63 to 125	7300 X 2200 X 2780	6000
RST 3000	75 to 150	8640 X 2200 X 2810	6500
RST 4000	100 to 200	10370 X 2560 X 3050	8500
RST 5000	125 to 250	11930 X 2560 X 3150	10570
